Disconnect Switch

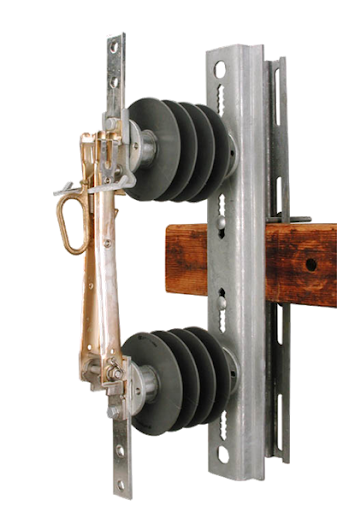

Hubbell Disconnect Switch
Disconnect Switches are Single Phase Hook Stick operated units ideal for manual switching up to 38kV 200kV BIL. They are rated either 900A or 600A and are suitable for application on overhead lines or station applications as they can be sourced either with serrated or smooth backstraps for cross arm mounting or station mounting.
Hubbell Disconnect Switch Technical Data Sheet
Specification |
Remarks |
||
|---|---|---|---|
Electrical Parameters |
Physical Dimension and Description |
||
| Typical Application (kV) | 15 kV | Base Type | Distribution base, Serrated slots |
| Ampere Capacity | 600A - 900 A | Insulator Type | Polymer or Polymer |
| BIL | 110 kV | Blade Type | Solid Copper |
