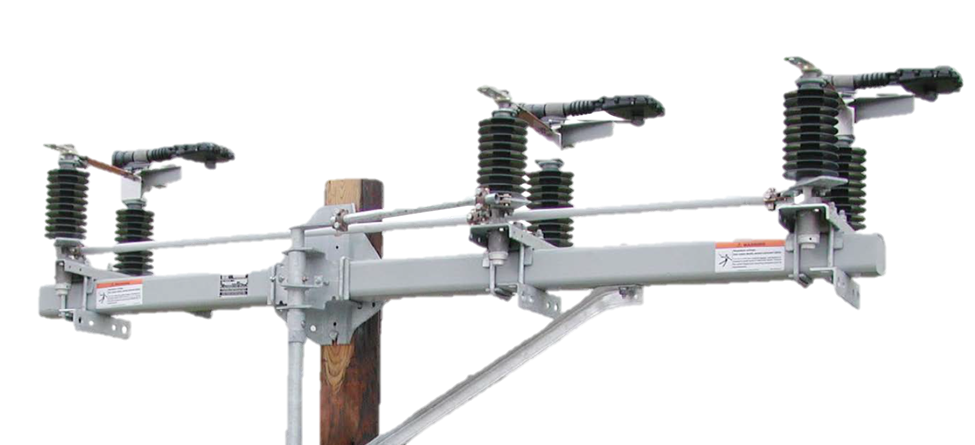

Load Break Switch
Hubbell's airbreak switchgear is expertly designed to enhance the reliability and efficiency of power distribution systems. These switches are crafted to handle high electrical loads, ensuring smooth and safe operations across various utility applications.
Load Break Switch Technical Data Sheet
Specification |
Remarks |
||
|---|---|---|---|
Electrical Parameters |
Physical Dimension and Description |
||
| Typical Application (kV) | 36 kV | Operation | Manual |
| Ampere Capacity | 900 A | Insulator Type | Polymer |
| BIL | 150 kV |
Load Break Switch Product Description
| Catalog Number | Description |
|---|---|
| AR116SS (Hubbell) | Switch, Load Break, Horizontal, Three Phase, Gang Operated, Polymer, 36 kV, 900 A, 150 kV BIL |
| HDSE (Eleron) | Switch, Load Break, Horizontal, Three Phase, Gang Operated, Polymer, 36 kV, 900 A, 150 kV BIL with Vacuum Interrupter |
