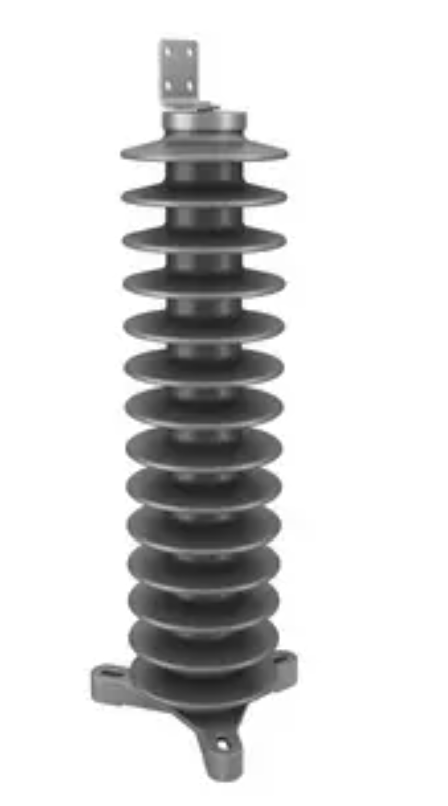

Substation Class Surge Arresters
offers a variety of substation class surge arresters designed to protect electrical equipment in substations from voltage surges. These arresters, including polymer and silicone options, are designed and tested to meet or exceed IEEE and IEC standards.
Substation Surge Arresters Technical Data Sheet
| Specification | Remarks | ||
|---|---|---|---|
| Electrical Parameters | Physical Dimension and Description | ||
| Typical Application (kV) | 3 kV - 60 kV | Base | 8.75 - 10 in. Bolt Circle |
| MCOV | 2.55 kV - 48 kV | Body | Polymer |
| Leakage Distance | 19.67 in - 71.9 in. | Type | Station |
Substation Surge Arresters Product Description
| Catalog Number | Description |
|---|---|
| EVP0048003010 | Surge Arrester, Station Class, 60 kV rated, 48 kV MCOV, EVP |
