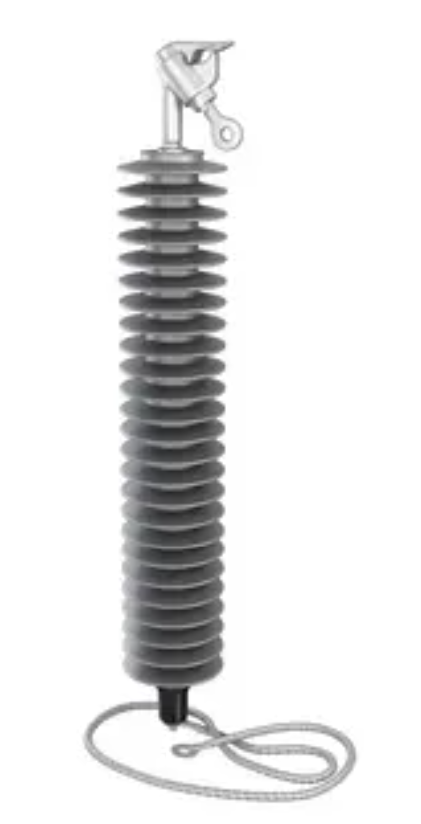

Transmission Line Surge Arresters
Transmission line surge arresters (TLSAs) are protective devices installed on power lines to safeguard them from voltage surges caused by lightning strikes or switching operations. They divert excess current to the ground, limiting the voltage rise and preventing damage to equipment like transformers and insulators.
Transmission Line Surge Arresters Technical Data Sheet
| Specification | Remarks | ||
|---|---|---|---|
| Electrical Parameters | Physical Dimension and Description |
||
| Typical Application (kV) | 3 kV and 35 kV | Installation Type | Suspension |
| Leakage Distance | 8.5 in - | Body | Polymer |
| BIL | 110 kV | Type | Line Arrester |
Transmission Line Surge Arresters Product Description
| Catalog Number | Description |
|---|---|
| 602003B0B0001 | Protecta*Lite Arrester, 3 kV rated, 2.55 MCOV, Polymer |
